🗺️ Roadmap — Recorded E2E Walkthrough

Captured by a Playwright run driving the real local stack (nginx → dev-authz → Go backend → Postgres) against the FINA Core project. Every screenshot below is the actual shipped UI; every percentage is computed by the real backend + frontend.

● Real recording — not mockups Project: FINA Core Timeline: Q3 2026 · 15 Jun–15 Aug 2026 Backend PR #212 Frontend PR #198 SDLC-360
How this was produced
Backend (:3901) + frontend (:3902) + the dev-authz sidecar were started from the feature worktrees with env from the original clones, served over https://tmlocal.silqfi.xyz. The new ticketmanager:roadmap:read/write route permissions were provisioned to the staging identity DB (PR #212 “Ok to deploy in platform staging” → auth-migration step) so the routes authorize locally. A Playwright spec (e2e/tests/roadmap-demo.spec.ts) then drove the whole flow as a super-admin, capturing the screenshots and video in this folder.

1 Enable the Roadmap in Project Settings

The Roadmap is opt-in per project (off by default, like the QA boards). Under Project Settings → General → Filters, a super admin flips Enable Roadmap on and saves.

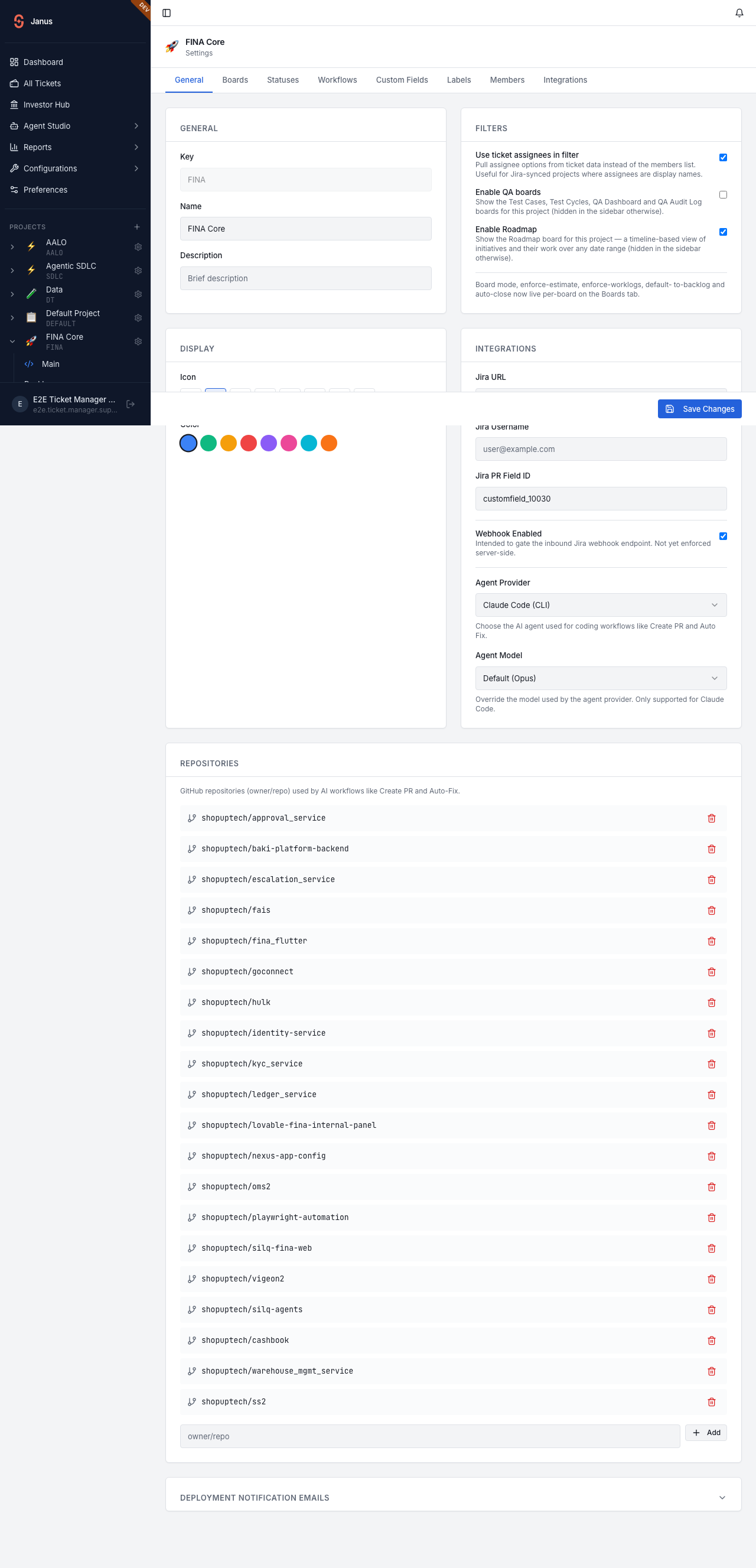

Project Settings with Enable Roadmap toggled on
The real settings page — “Enable Roadmap” checked in the Filters card, “Save Changes” top-right. Backend: PATCH /projects/{id} {roadmap_enabled:true}.

2 The Roadmap board (empty state)

With the flag on, a Roadmap entry appears under FINA Core in the sidebar. The board starts empty and prompts to create the first timeline.

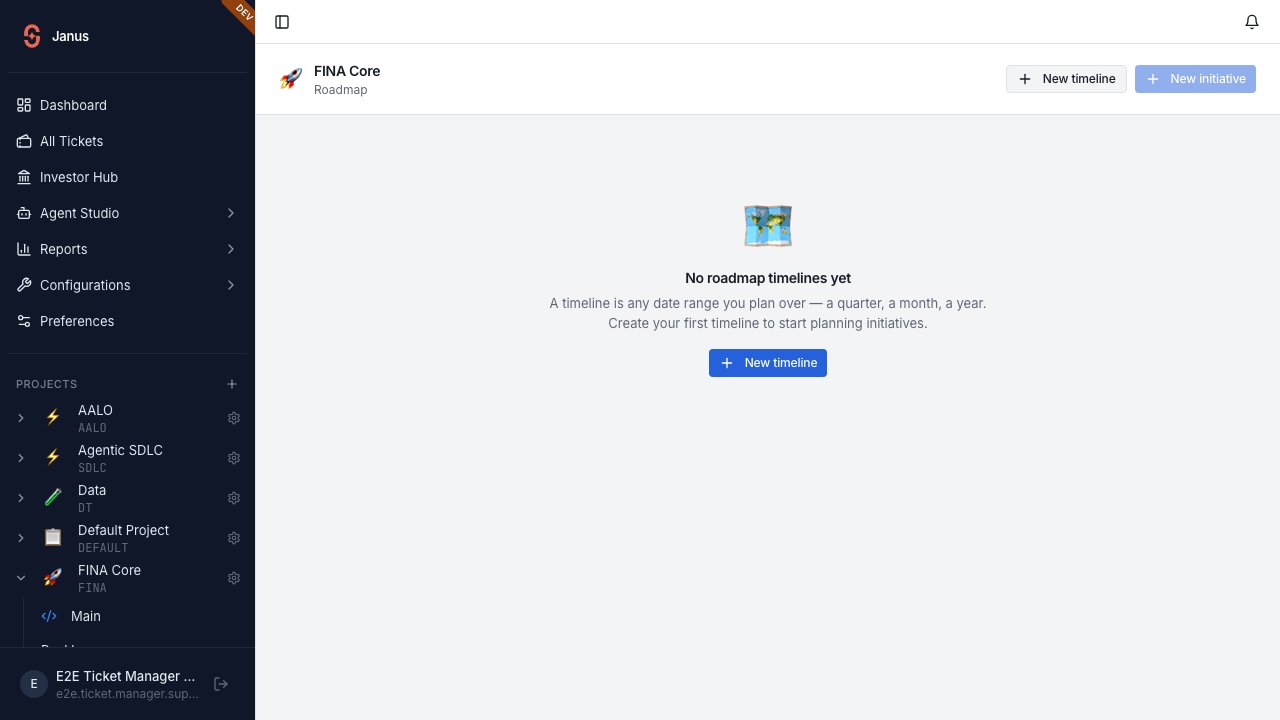

Empty roadmap board
/project/FINA/roadmap — “No roadmap timelines yet”.

3 Create a timeline (a label + date range)

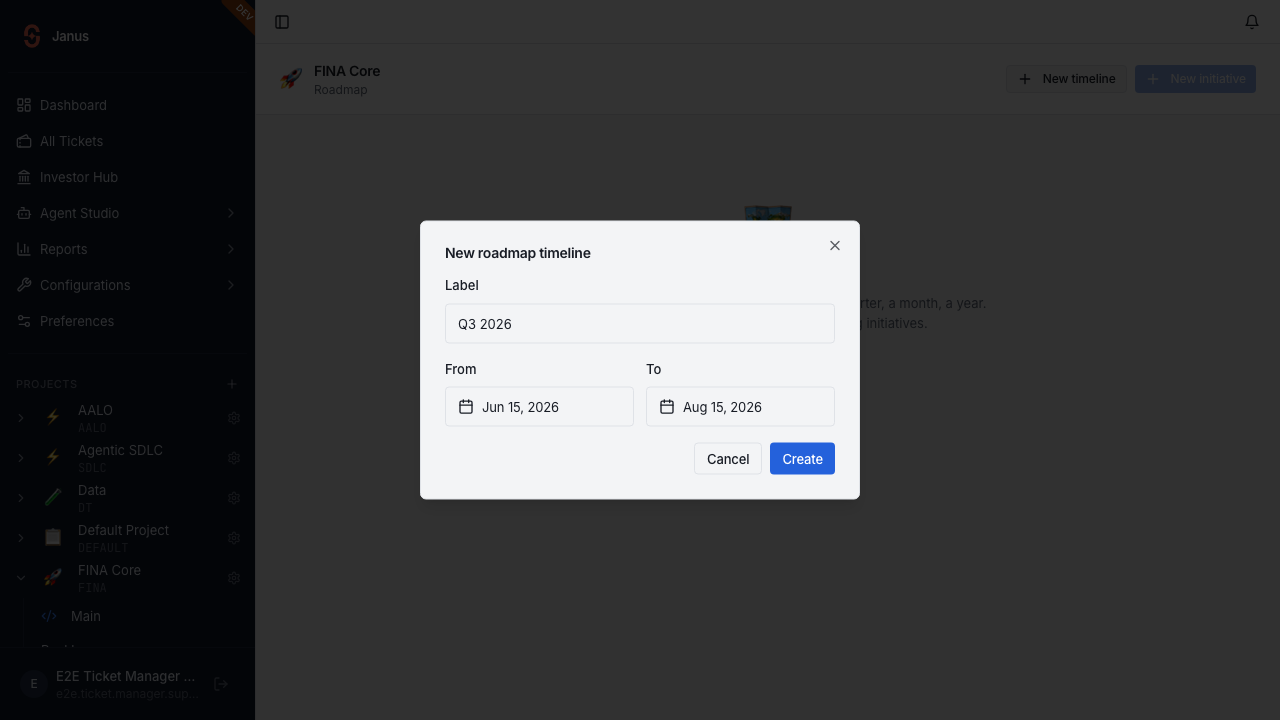

New roadmap timeline dialog
A timeline is a free-form label plus a required From/To range — quarter, month, year, anything. Here Q3 2026 · 15 Jun → 15 Aug 2026.

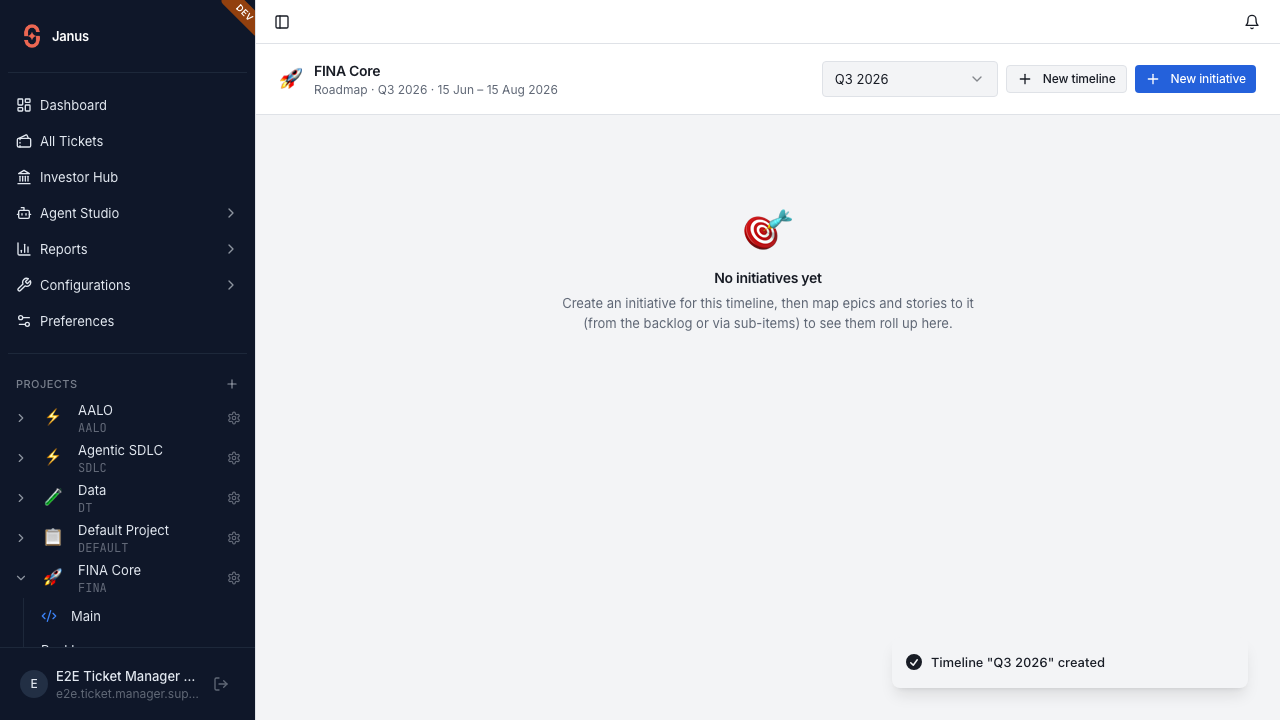

Timeline created
Timeline created and selected; the header + picker show its date range.

Backend: POST /projects/FINA/roadmap/cycles (route name kept) creates a sprint row with kind='roadmap', board_id=NULL, and the start_date/end_date range — invisible to every sprint query.

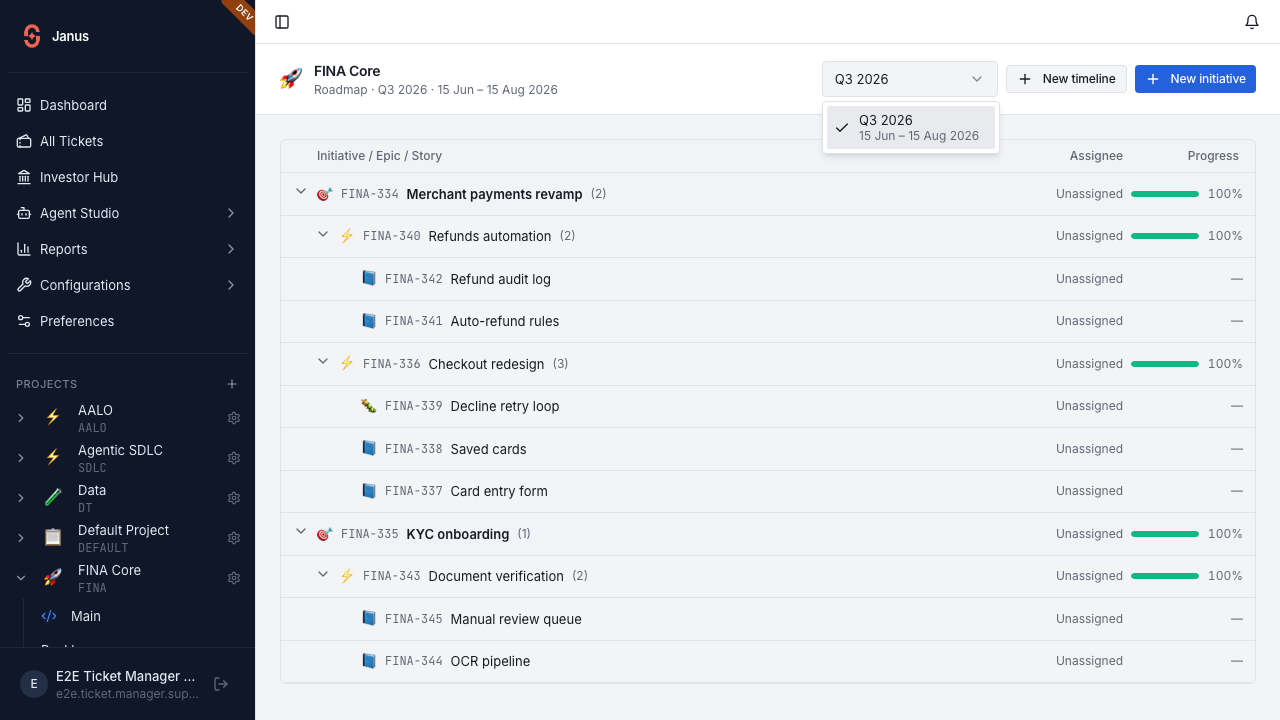

Timeline selector — label-only field, two-row options
The timeline picker: the field shows just the label (Q3 2026), while each option stacks the label over its date range — so a project can run any cadence (a quarter, a month, a year) side by side.

4 Create initiatives from the board

“New initiative” opens the create dialog with the type locked to Initiative (🎯). On save it’s linked to the active timeline. Two are added: Merchant payments revamp and KYC onboarding.

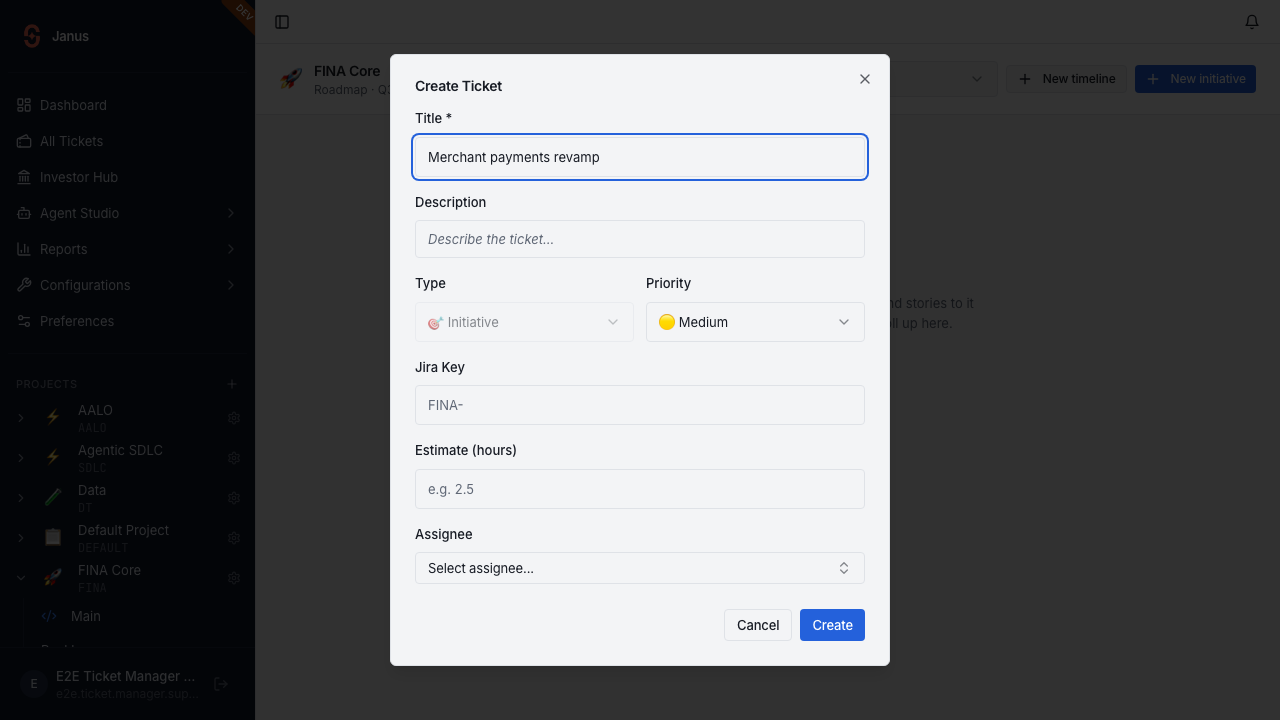

Create initiative dialog
Type pinned to Initiative (disabled selector).

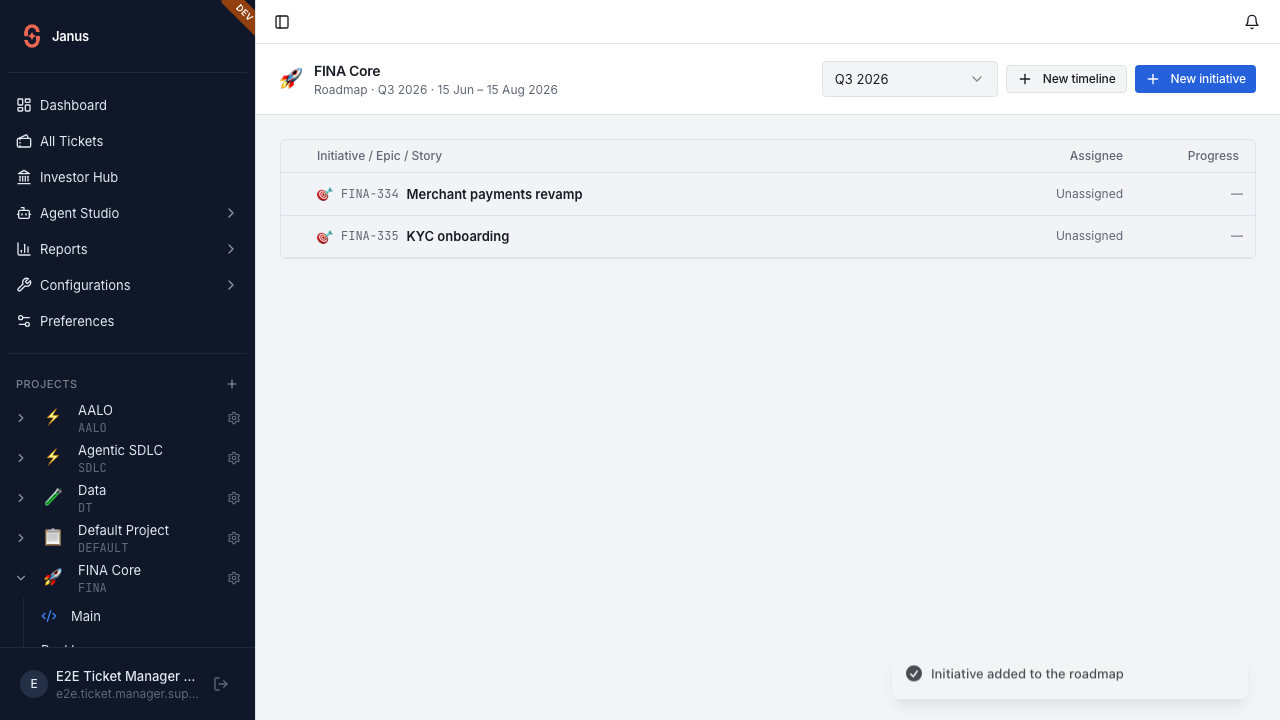

Two initiatives on the board
Both initiatives now on the Q3 2026 board.

5 Map epics & stories — the tree at 0%

Epics, stories and a bug are mapped under the initiatives (via parent_id). The board renders the real backlog-style collapsible tree — Initiative → Epic → Story/Bug — with real ticket keys. Nothing is done yet, so every roll-up reads 0%; leaf rows show —.

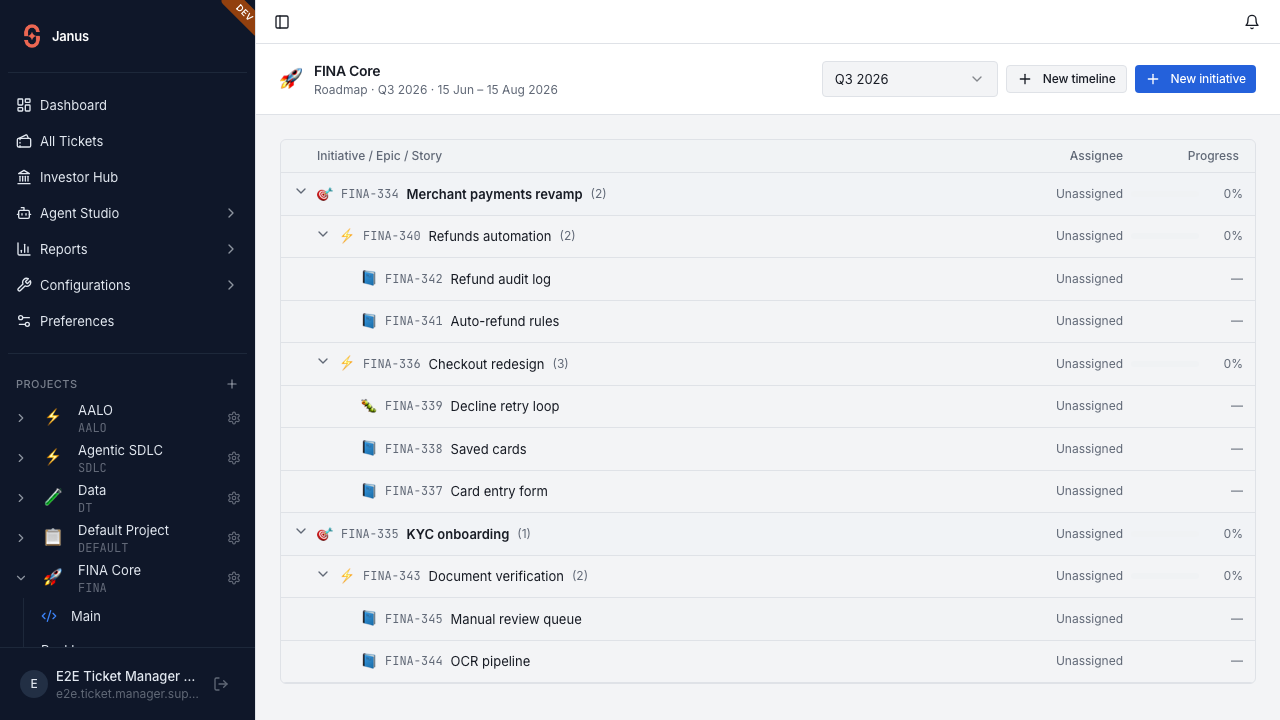

Roadmap tree at 0 percent
FINA-286 / FINA-287 initiatives with their epics & stories — all 0%, assignee + progress on the right (no status/priority).

6 Move tickets to done — the bars climb

As stories complete, the roll-up updates. Here four items are done; the green bars fill and the percentages rise.

Roadmap at mixed progress
Real numbers: Merchant payments revamp 43% · Refunds automation 50% · Checkout redesign 67% · KYC onboarding 33% · Document verification 50%.

7 Close out the work — roll-ups reach 100%

Finishing the remaining stories (and the backend auto-closing each epic once all its children are terminal) drives both initiatives to 100%.

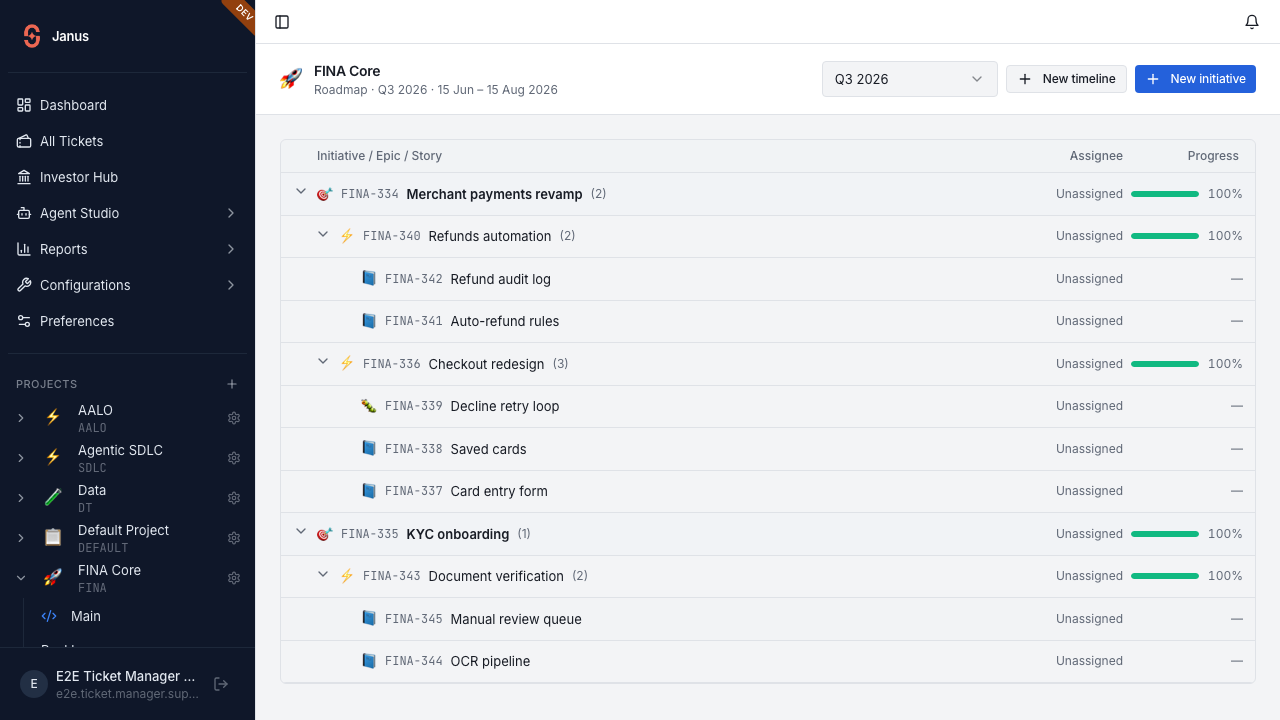

Roadmap at 100 percent
Every initiative and epic at 100% — fully shipped timeline.
Verified progression (from the live run)
InitiativeMappedMidFinal
FINA-286 · Merchant payments revamp 0% 43% 100%
FINA-287 · KYC onboarding 0% 33% 100%
A node’s % = done/closed descendants ÷ total descendants, recomputed on the frontend from the tickets it already fetched. KYC reaches 100% (not 67%) because the backend’s parent-status derivation auto-closes the “Document verification” epic once both its stories are done — real, observed behavior.

▶ Full screen recording

The complete Playwright run end-to-end (settings → timeline → initiatives → mapping → status changes → 100%).
